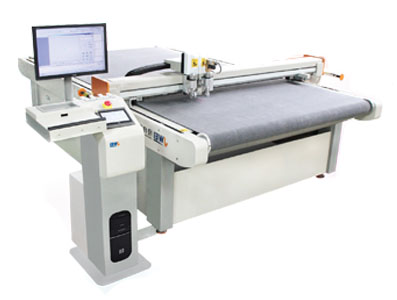

JWEI CB03-2513

Digital Flatbed CNC cutting machine

JWEI CB03-2513

The CB Series Digital Cutter is a multi-functional digital cutter that meets a variety of needs. The modularised tool head structure enables convenient tool-switching and provides economical future upgrading. The digital cutter's six axis motor-controlled CNC system performs with high speed and accuracy. The integrated controller reduces the error rate and maintenance cost while the divided-section vacuum system offers satisfactory and controllable suction. The Ethernet port user-friendly interface allows design software from different PCs access to one cutter which maximizes your investment. The LCD touch screen panel makes it easy to learn and operate. The digital cutter offers flexible tool module options that meet the requirements of diverse industries. The digital cutter is a CE certified product.

QUICK SPECIFICATIONS

Effective Cutting Area

2500mm x 1300mm

Cutting Speed

Up to 800mm/s (Depending on different material type)

Moving speed

Up to 1200mm/s

Cutting Depth

Up to 50mm (Depending on different material type)

Min Cut Diameter

3mm

Power Supply

AC 110V / 220V / 380V ± 10% 50HZ / 11KW - CE certified product

Effective Cutting Area

2500mm x 1300mm

Max conveyor width - with Conveyor Model

1300mm

JWEI Digital Flatbed CNC cutting machine

Download Brochure

Features of the JWEI CB03-2513

• Multi-functional Digital Cutter that can be quickly changed to adapt to different materials.
• The CB Series Digital Cutter has an LCD touch screen panel.
• Functions of making dotted lines, partial and whole cutting, camera positioning and accurate plotting.
• Platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.
• Anti-collision and the built-in auto-sensing devices ensure the safety of the CB Series Digital Cutter.
• High efficiency can be realised without making a high-cost knife model.

GALLERY

JWEI Digital Flatbed CNC cutting machine
JWEI Digital Flatbed CNC cutting machine
JWEI Digital Flatbed CNC cutting machine

Watch how it works

We offer only the best machines that cater to your specific requirements, but don't just take our word for it, we want you to see the machine in action! Watch this short feature clip of this machine.

If you feel that this may be the perfect machine for your needs, our team will be more than happy to schedule an actual demo for you

Tags

JWEI CB03-2513, Digital Flatbed Cutter, Engraving and Router, Oscillating thorough cutting, Kiss cutting, Creasing
